This 512Mb volatile memory IC is designed for high-speed applications, operating at frequencies up to 333MHz. It features a 32MX16 organization and is packaged in a BGA package for surface mount applications. The IC is rated for operating temperatures between -40°C and 85°C and has a maximum supply voltage of 1.9V. It is compliant with RoHS regulations and has a supply current of 250mA.
Frequency333MHz
PackageBGA
Current250mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Issi IS43DR16320C-3DBLI technical specifications.
General
| Access Time | 450ps |
| Access Time-Max | 0.45ns |
| Address Bus Width | 15b |
| Package/Case | BGA |
| Data Bus Width | 16b |
| Density | 536870912b |
| Frequency | 333MHz |
| Max Frequency | 333MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.9V |
| Memory Size | 512Mb |
| Memory Type | Volatile, |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Operating Supply Voltage | 1.8V |
| Organization | 32MX16 |
| Package Quantity | 209 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 250mA |
Compliance
| RoHS | Compliant |
Datasheet
Issi IS43DR16320C-3DBLI Datasheet
Download the complete datasheet for Issi IS43DR16320C-3DBLI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

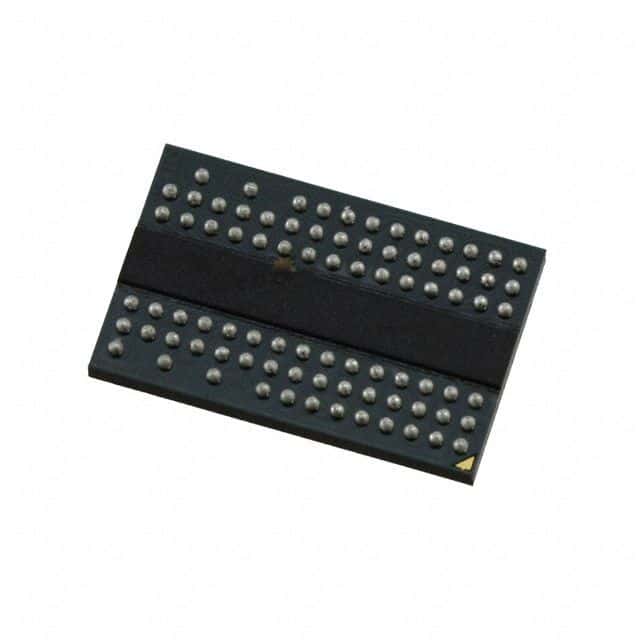

Product Images
