4Mb Asynchronous SRAM with 10ns access time, 512K x 8 configuration, and 3.3V operating voltage. This CMOS memory IC features a parallel interface, 100MHz maximum frequency, and operates across an industrial temperature range of -40°C to 85°C. Packaged in a 44-pin TSOP (R-PDSO-G44) for surface mounting, it offers a 19-bit address bus and 8-bit word size.
Frequency100MHz
PackageTSOP
Current95mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Issi IS61LV5128AL-10TLI technical specifications.
General
Access Time
10ns
Access Time-Max
10ns
Address Bus Width
19b
Package/Case
TSOP
Density
4Mb
Height
1.05mm
Interface
Parallel
JESD-30 Code
R-PDSO-G44
Lead Free
Lead Free
Length
18.52mm
Max Frequency
100MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.63V
Memory Size
4Mb
Memory Type
RAM, , SRAM - Asynchronous
Memory Width
8
Min Operating Temperature
-40°C
Min Supply Voltage
3.135V
Mount
Surface Mount
Number of Functions
1
Number of Ports
1
Number of Words
512000
Operating Supply Voltage
3.3V
Package Body Material
Plastic
Package Quantity
135
Package Shape
Rectangular
Packaging
Tray
Parallel/Serial
PARALLEL
Peak Reflow Temperature (Cel)
260°C
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
95mA
Surface Mount
Yes
Sync/Async
Asynchronous
Technology
CMOS
Temperature Grade
INDUSTRIAL
Terminal Finish
Tin
Terminal Form
Gull Wing
Terminal Position
DUAL
Time @ Peak Reflow Temperature-Max (s)
40s
Width
10.29mm
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Issi IS61LV5128AL-10TLI Datasheet
Download the complete datasheet for Issi IS61LV5128AL-10TLI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

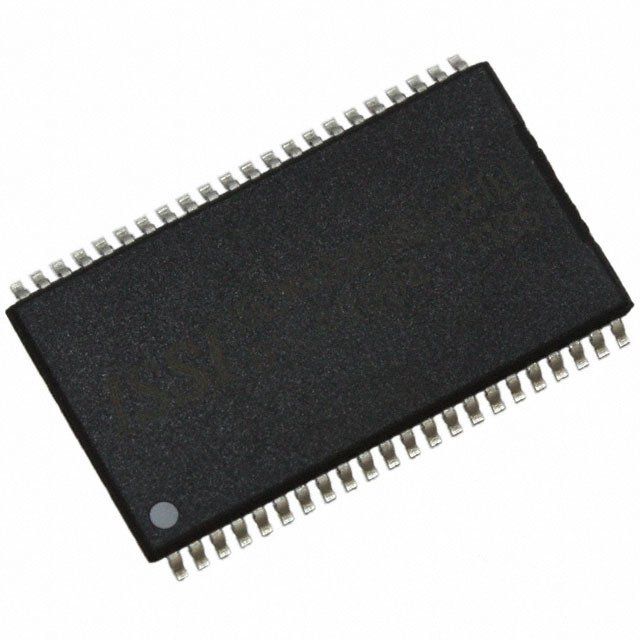

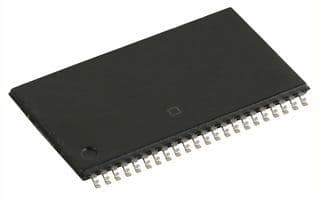

Product Images
