16Mb Asynchronous SRAM with 10ns access time. Features an 8-bit word size and a 21-bit address bus. Operates from 2.4V to 3.6V supply voltage with a maximum operating temperature of 85°C. Packaged in a 44-TSOPII format. RoHS compliant.
PackageTSOP
Current100mA
Quick Jump:
Technical Specifications
Issi IS61WV20488BLL-10TLI technical specifications.
General
| Access Time | 10ns |
| Access Time-Max | 10ns |
| Address Bus Width | 21b |
| Package/Case | TSOP |
| Density | 16Mb |
| Interface | Parallel |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 16Mb |
| Memory Type | RAM, , SRAM - Asynchronous |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.4V |
| Number of Ports | 1 |
| Package Quantity | 135 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 100mA |
| Sync/Async | Asynchronous |
| Word Size | 8b |
Compliance
| RoHS | Compliant |
Datasheet
Issi IS61WV20488BLL-10TLI Datasheet
Download the complete datasheet for Issi IS61WV20488BLL-10TLI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

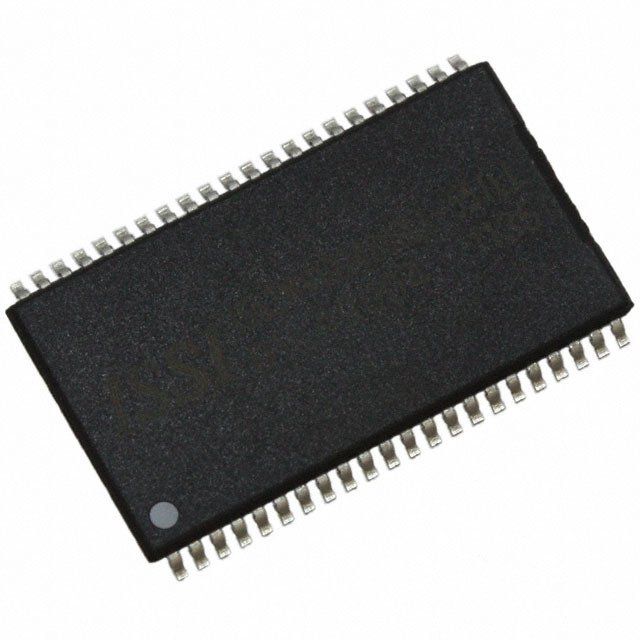

Product Images
