4Mb Parallel SRAM IC with 10ns access time, featuring an 8-bit word size and 19-bit address bus for 512,000 words. Operates asynchronously with a maximum frequency of 100MHz, drawing 40mA supply current. Housed in a 44-pin TSOP package, this component supports a supply voltage range of 2.4V to 3.6V and operates between -40°C and 85°C. RoHS compliant.
Frequency100MHz
PackageTSOP
Current40mA
Quick Jump:
Technical Specifications
Issi IS61WV5128BLL-10TLI technical specifications.
General
| Access Time | 10ns |
| Access Time-Max | 10ns |
| Address Bus Width | 19b |
| Package/Case | TSOP |
| Density | 4Mb |
| Height | 1.05mm |
| Interface | Parallel |
| Length | 18.54mm |
| Max Frequency | 100MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 4Mb |
| Memory Type | RAM, , SRAM - Asynchronous, CMOS |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.4V |
| Number of Ports | 1 |
| Number of Words | 512000 |
| Package Quantity | 135 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | IS61WV5128BLL |
| Supply Current | 40mA |
| Sync/Async | Asynchronous |
| Width | 10.29mm |
| Word Size | 8b |
Compliance
| RoHS | Compliant |
Datasheet
Issi IS61WV5128BLL-10TLI Datasheet
Download the complete datasheet for Issi IS61WV5128BLL-10TLI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

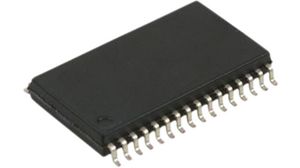

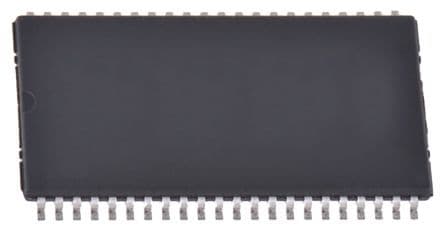

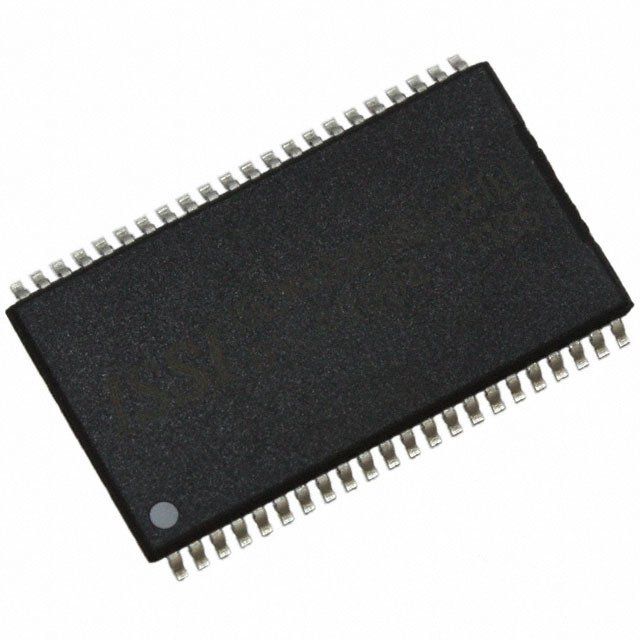

Product Images
