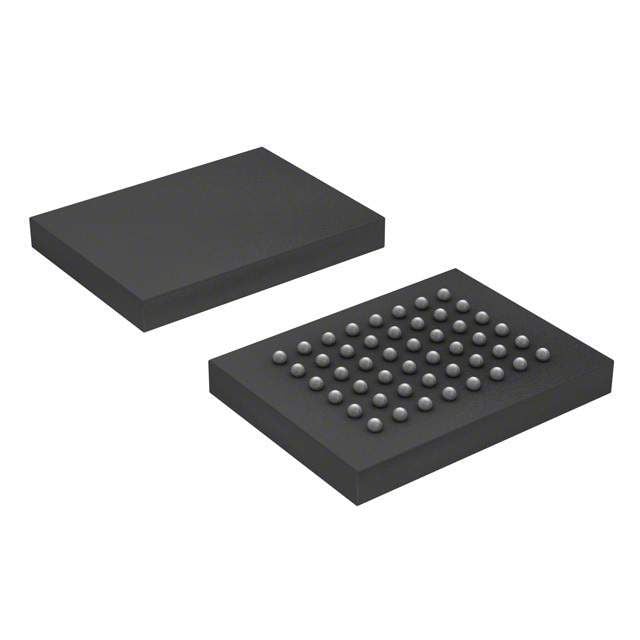

8Mb Parallel SRAM IC, featuring 55ns access time and a 16-bit word size. This asynchronous, volatile memory component operates with a 2.5V to 3.6V supply voltage and a 3.3V nominal voltage. Housed in a compact 48-pin TFBGA package (7.3mm x 8.8mm x 0.9mm), it offers 512,000 words of storage and a maximum operating frequency of 18MHz. Designed for industrial temperature ranges (-40°C to 85°C), this lead-free and RoHS-compliant semiconductor is suitable for surface mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Issi IS62WV51216BLL-55BLI datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Issi IS62WV51216BLL-55BLI technical specifications.
| Access Time | 55ns |
| Access Time-Max | 55ns |
| Address Bus Width | 19b |
| Package/Case | TFBGA |
| Density | 8Mb |
| Height | 0.9mm |
| Interface | Parallel |
| JESD-30 Code | R-PBGA-B48 |
| Lead Free | Lead Free |
| Length | 8.8mm |
| Max Frequency | 18MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 8Mb |
| Memory Type | Volatile, , SRAM |
| Memory Width | 16 |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.5V |
| Number of Functions | 1 |
| Number of Ports | 1 |
| Number of Words | 512000 |
| Operating Supply Voltage | 3.3V |
| Package Body Material | Plastic |
| Package Quantity | 312 |
| Package Shape | Rectangular |
| Packaging | Rail/Tube |
| Parallel/Serial | PARALLEL |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 5mA |
| Surface Mount | Yes |
| Sync/Async | Asynchronous |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Form | Ball |
| Terminal Position | BOTTOM |
| Width | 7.3mm |
| Word Size | 16b |
| RoHS | Compliant |
