4Mb Asynchronous SRAM, 55ns access time, 8-bit word size, and a 19-bit address bus width. This surface-mount IC features a 32-pin TSOP package, operating at 3.3V with a voltage range of 2.5V to 3.6V. It offers a memory density of 4 Megabits and is RoHS compliant.
PackageTSOP
Current45mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Issi IS62WV5128BLL-55TLI technical specifications.
General
| Access Time | 55ns |
| Access Time-Max | 55ns |
| Address Bus Width | 19b |
| Package/Case | TSOP |
| Density | 4Mb |
| Height | 1.05mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 21.08mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 4Mb |
| Memory Type | RAM, , SRAM - Asynchronous |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Ports | 1 |
| Number of Words | 512000 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 156 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 45mA |
| Sync/Async | Asynchronous |
| Width | 10.29mm |
| Word Size | 8b |
Compliance
| RoHS | Compliant |
Datasheet
Issi IS62WV5128BLL-55TLI Datasheet
Download the complete datasheet for Issi IS62WV5128BLL-55TLI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

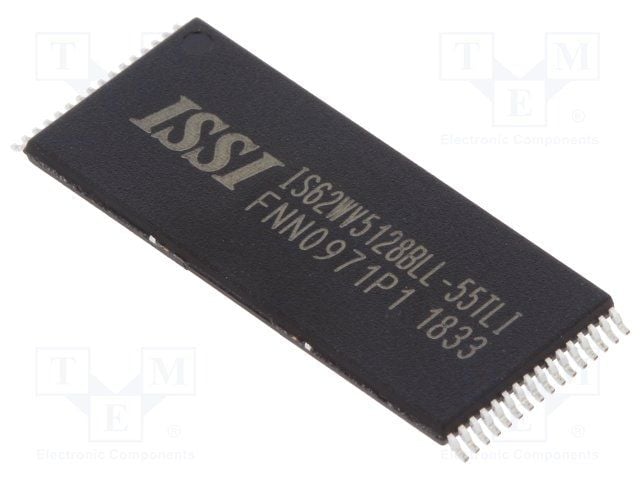

Product Images
