DPDT toggle switch featuring a 5A contact current rating and 120VAC voltage rating. Offers a 40,000 cycle electrical life with silver contacts and silver plating. Includes a 17.88mm aluminum locking lever actuator and solder termination. Operating temperature range is -30°C to 85°C.
Package120
MountingPanel
Quick Jump:
Technical Specifications
ITT 7203K2ZQE technical specifications.
General
| Actuator Length | 17.88mm |
| Actuator Material | Aluminium |
| Actuator Type | LOCKING LEVER |
| Package/Case | 120 |
| Contact Current Rating | 5A |
| Contact Material | Silver |
| Contact Plating | Silver |
| Depth | 11.43mm |
| Electrical Life | 40000Cycles |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 12.7mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 28V |
| Mount | Panel |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Series | 7000 |
| Switch Function | On-Off-On |
| Termination | Solder |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 120V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
ITT 7203K2ZQE Datasheet
Download the complete datasheet for ITT 7203K2ZQE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

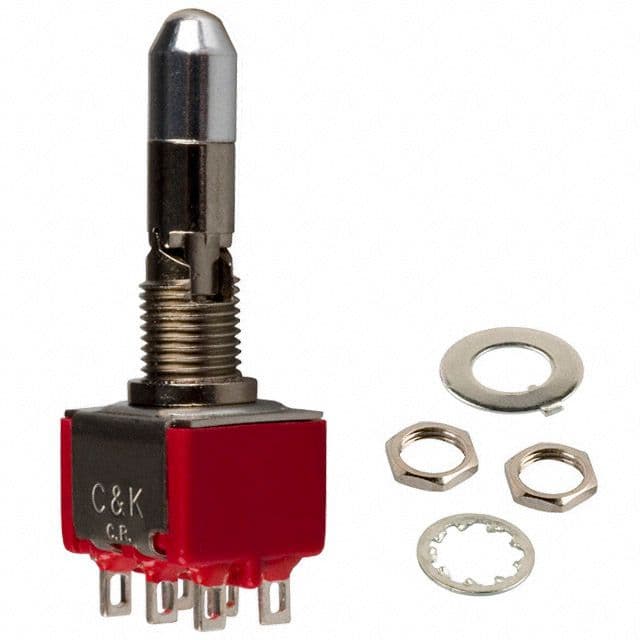

Product Images
