4PDT toggle switch featuring a 5A current rating and 250V AC / 28V DC voltage rating. This non-illuminated, standard round actuator switch has a brass, chrome-plated actuator with a 10.67mm length. It offers a solder termination and a 120V AC voltage rating, with a 4PDT throw configuration and an electrical life of 100,000 cycles. Operating temperature range is -30°C to 85°C.
Current Rating5A
MountingPanel
Quick Jump:
Technical Specifications
ITT 7401SYZQE technical specifications.
General
| Actuator Length | 10.67mm |
| Actuator Material | Brass, Chrome |
| Actuator Type | Standard Round |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 5A |
| Depth | 21.59mm |
| Electrical Life | 100000Cycles |
| Height | 12.7mm |
| Illumination Type | Non-Illuminated |
| Lead Free | Lead Free |
| Length | 12.7mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 28V |
| Mount | Panel |
| Number of Poles | 4 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 7000 |
| Switch Function | On-On |
| Termination | Solder |
| Throw Configuration | 4PDT |
| Voltage Rating (AC) | 120V |
| DC Rated Voltage | 28V |
| Width | 21.59mm |
Compliance
| RoHS | Compliant |
Datasheet
ITT 7401SYZQE Datasheet
Download the complete datasheet for ITT 7401SYZQE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

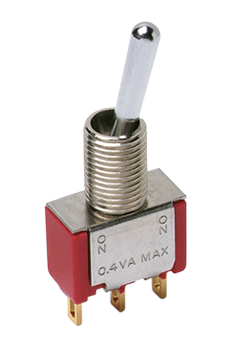

Product Images
