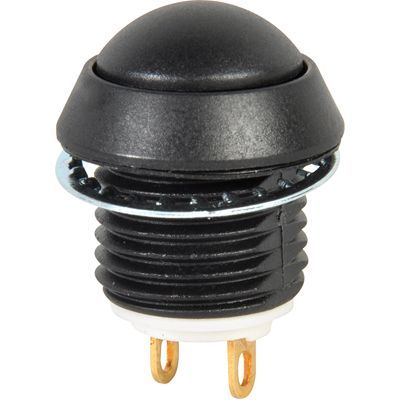

Illuminated pushbutton switch featuring a SPST-NO throw configuration and Off-Mom function. Rated for 125V AC and 50V DC (24V DC rated), with a current rating of 400mA. Offers 1,000,000 electrical and mechanical life cycles. Constructed with a black polycarbonate actuator and copper alloy contacts plated with gold and silver. Panel-mounted with straight solder termination and IP67, waterproof, dust-tight ratings.
Current Rating400mA
MountingPanel, Front
Quick Jump:
Technical Specifications
ITT AP2D200TZBE technical specifications.
General
Actuator Color
Black
Actuator Length
3.54mm
Actuator Material
Polycarbonate
Contact Material
Copper Alloy
Contact Plating
Gold, Silver
Current Rating
400mA
Depth
17.4mm
Electrical Life
1000000Cycles
Length
17.4mm
Max Current Rating
400mA
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
50V
Mechanical Life
1000000Cycles
Mount
Panel, Front
Orientation
Straight
Package Quantity
1
Packaging
Tray
Radiation Hardening
No
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AP
Switch Function
Off-Mom
Termination
Solder
Throw Configuration
SPST
Voltage Rating (AC)
125V
DC Rated Voltage
24V
Compliance
RoHS
Compliant
