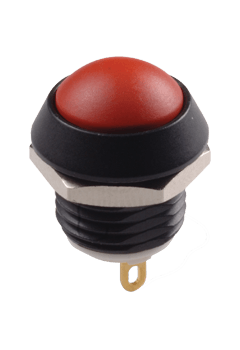

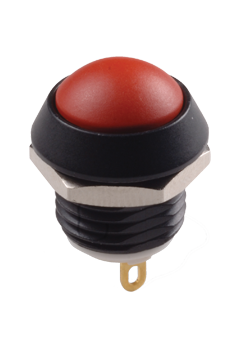

Illuminated pushbutton switch featuring a red, round button actuator with a 3.99mm length, constructed from polybutylene and polycarbonate. This SPST-NO (Single Pole Single Throw - Normally Open) switch offers a current rating of 400mA and a maximum AC voltage rating of 125V, with a DC rating of 24V. It boasts both electrical and mechanical lifespans of 1,000,000 cycles and is designed for panel mounting with a straight orientation. The switch is IP67 rated, waterproof, and dust-tight, with gold and silver plated copper alloy contacts and LED illumination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the ITT AP4C300TZBE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Color | Red |
| Actuator Length | 3.99mm |
| Actuator Material | Polybutylene, Polycarbonate |
| Actuator Type | Round, Button |
| Contact Material | Copper Alloy |
| Contact Plating | Gold, Silver |
| Current Rating | 400mA |
| Depth | 17.4mm |
| Electrical Life | 1000000Cycles |
| Illumination Type | LED |
| Length | 17.4mm |
| Max Current Rating | 400mA |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 50V |
| Mechanical Life | 1000000Cycles |
| Mount | Panel, Front |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Tray |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | AP |
| Switch Function | Off-Mom |
| Termination | Solder |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 24V |
| RoHS | Compliant |
