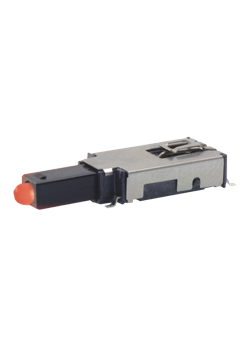

Illuminated pushbutton switch featuring a SPDT throw configuration and momentary (On-Mom) function. This surface-mount device offers a 250mA current rating at 50V DC, with copper alloy contacts plated in silver and gold. The black nylon and glass actuator is designed for right-angle orientation, and the switch includes green and orange LED illumination. Packaged on tape and reel, this RoHS compliant component operates within a temperature range of -40°C to 85°C.
PackageSMD/SMT
Current Rating250mA
MountingSurface Mount
Quick Jump:
Technical Specifications
ITT ELUMOASAQ8C22 technical specifications.
General
| Actuator Color | Black |
| Actuator Material | Nylon, Glass |
| Package/Case | SMD/SMT |
| Contact Material | Copper Alloy |
| Contact Plating | Silver, Gold |
| Current Rating | 250mA |
| Illumination Color | Green, Orange |
| Illumination Type | LED |
| Length | 11.43mm |
| Max Current Rating | 250mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 50V |
| Mount | Surface Mount |
| Orientation | Right Angle |
| Package Quantity | 450 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | ELUM™ |
| Switch Function | On-Mom |
| Termination | Gull Wing |
| Throw Configuration | SPDT |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
