Illuminated Pushbutton Switch, SPDT, On-Mom function, rated for 0.4VA at 20V AC/DC. Features gold-plated copper alloy contacts, a nylon plunger actuator, and surface mount termination with gull wing leads. Operates within a -30°C to 85°C temperature range, offering 30,000 electrical cycles and IP57 waterproof rating. Packaged on tape and reel for automated assembly.
MountingSurface Mount
Quick Jump:
Technical Specifications
ITT EP12SD1SA1BE technical specifications.
General
| Actuator Length | 5.46mm |
| Actuator Material | Nylon, Glass, Polyester, Thermoplastic |
| Actuator Type | PLUNGER |
| Contact Current Rating | 400mA |
| Contact Material | Gold, Copper Alloy |
| Contact Plating | Gold, Nickel |
| Depth | 20.12mm |
| Electrical Life | 30000Cycles |
| Lead Free | Lead Free |
| Length | 8.25mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 20V |
| Max Voltage Rating (DC) | 20V |
| Mount | Surface Mount |
| Orientation | Right Angle |
| Package Quantity | 600 |
| Packaging | Tape and Reel |
| Ratings | IP57, Waterproof |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EP |
| Switch Function | On-Mom |
| Termination | Gull Wing |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 20V |
| DC Rated Voltage | 20V |
Compliance
| RoHS | Compliant |
Datasheet
ITT EP12SD1SA1BE Datasheet
Download the complete datasheet for ITT EP12SD1SA1BE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

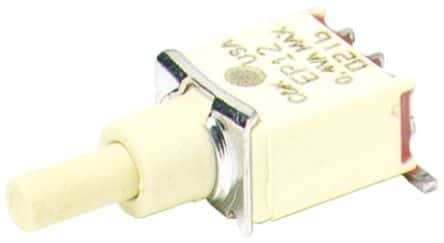

Product Images
