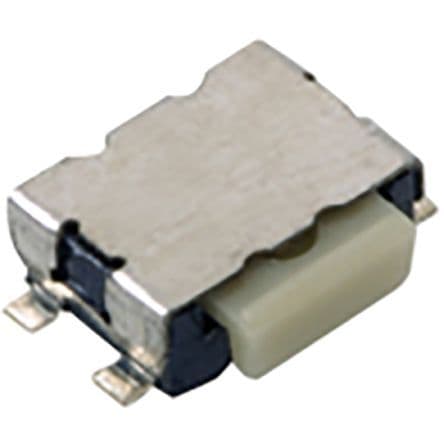

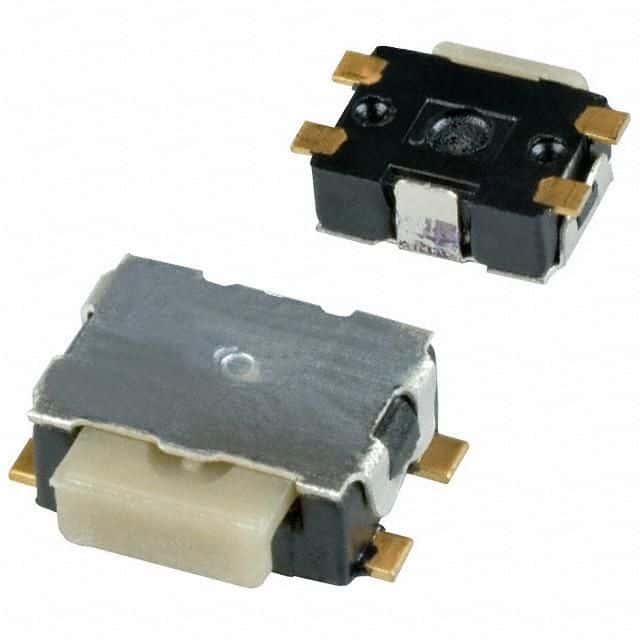

Surface mount tactile switch with SPST-NO throw configuration, rated for 0.01A and 32V DC. Features gold contacts with silver plating, a 3N operating force, and 0.3mm switch travel. This non-illuminated, right-angle component offers a mechanical life of 100,000 cycles, a temperature range of -40°C to 125°C, and IP40 ratings. Supplied on tape and reel, it is lead-free and RoHS compliant.
Storage2.8mm
Current Rating10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
ITT KMS233GLFG technical specifications.
General
Actuator Length
0.75mm
Contact Current Rating
10mA
Contact Material
Gold
Contact Plating
Silver
Current Rating
10mA
Depth
4.6mm
Direction
RIGHT
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Length
3.55mm
Max Current Rating
10mA
Max Operating Temperature
125°C
Mechanical Life
100000Cycles
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
32V
Mount
Surface Mount
Operating Force
3N
Orientation
Right Angle
Package Quantity
1
Packaging
Tape and Reel
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KMS
Size
2.8mm
Switch Function
Off-Mom
Switch Travel
0.3mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
32V
Width
3.5mm
Compliance
RoHS
Compliant
