SPST-NO tactile switch with a 50mA contact current rating and 32V DC voltage rating. Features a standard actuator with 2.6mm length and 0.7mm travel, requiring a 340gf operating force. Surface mountable with gull wing termination, this non-illuminated switch offers a mechanical life of 300,000 cycles and is rated IP67 for waterproof and dust-tight applications. Operates within a temperature range of -40°C to 85°C and is lead-free and RoHS compliant.
Storage6.2mm
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
ITT KSC441GST1LFS technical specifications.
General
| Actuator Length | 2.6mm |
| Actuator Type | Standard |
| Contact Current Rating | 50mA |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 50mA |
| Illumination Type | Non-Illuminated |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Mechanical Life | 300000Cycles |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 32V |
| Mount | Surface Mount |
| Operating Force | 340gf |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | KSC-ST |
| Size | 6.2mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.7mm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| DC Rated Voltage | 32V |
Compliance
| RoHS | Compliant |
Datasheet
ITT KSC441GST1LFS Datasheet
Download the complete datasheet for ITT KSC441GST1LFS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

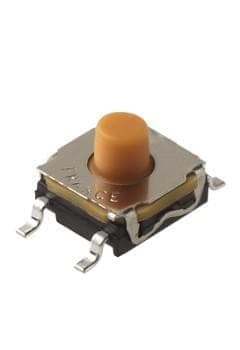

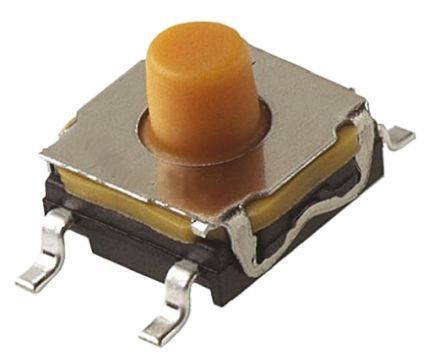

Product Images
