SPST-NO tactile switch with a 32V DC rating and 50mA current capacity. Features a 6.2mm standard actuator, 0.6mm travel, and 300gf operating force. Through-hole mount with PC pin termination and silver contacts. Rated IP65 for water and dust resistance, with a mechanical life of 100,000 cycles. Operates across a temperature range of -40°C to 85°C.
Storage5.08mm
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
ITT KSL0M412LFT technical specifications.
General
| Actuator Length | 6.2mm |
| Actuator Type | Standard |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 50mA |
| Depth | 8mm |
| Illumination Type | Non-Illuminated |
| Lead Free | Lead Free |
| Length | 6.2mm |
| Max Current Rating | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 32V |
| Mechanical Life | 100000Cycles |
| Mount | Through Hole |
| Operating Force | 300gf |
| Orientation | Straight |
| Package Quantity | 250 |
| Packaging | Bulk |
| Ratings | IP65, Water Resistant, Dust Tight |
| RoHS Compliant | Yes |
| Series | KSL MKII |
| Size | 5.08mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.6mm |
| Termination | PC Pin |
| Throw Configuration | SPST |
| DC Rated Voltage | 32V |
| Width | 7.4mm |
Compliance
| RoHS | Compliant |
Datasheet
ITT KSL0M412LFT Datasheet
Download the complete datasheet for ITT KSL0M412LFT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

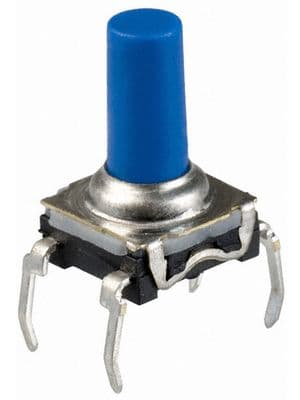

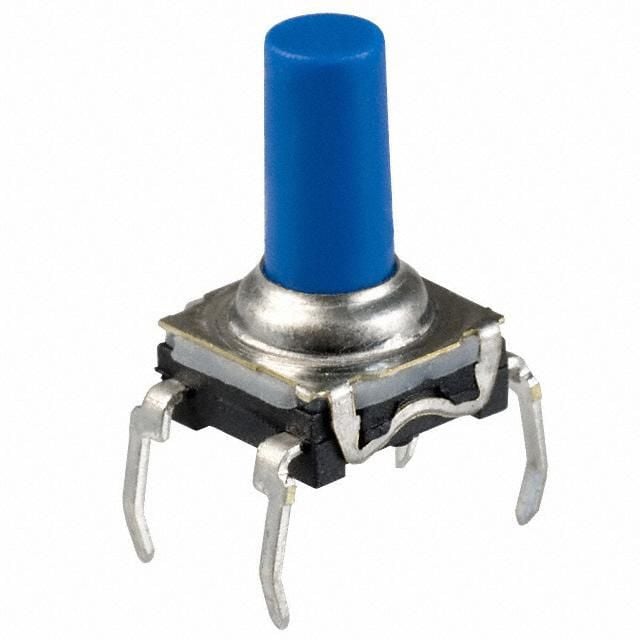

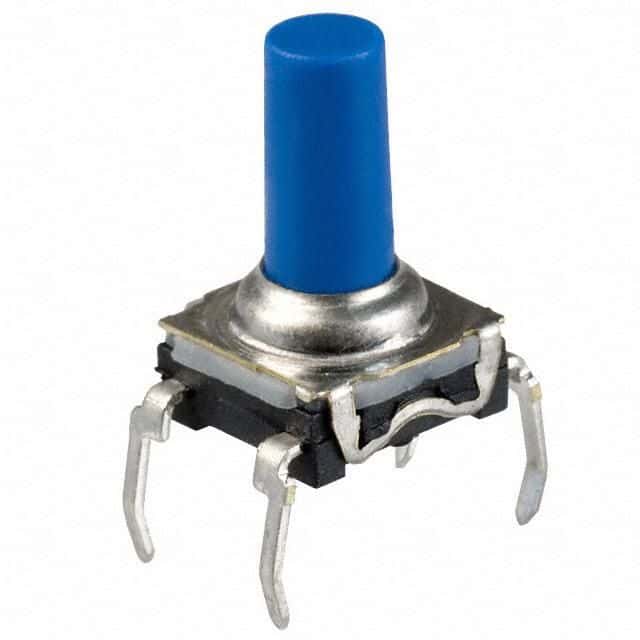

Product Images
