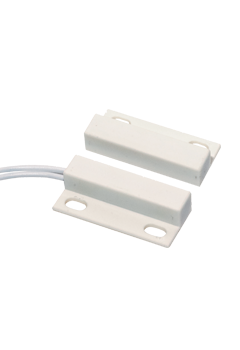

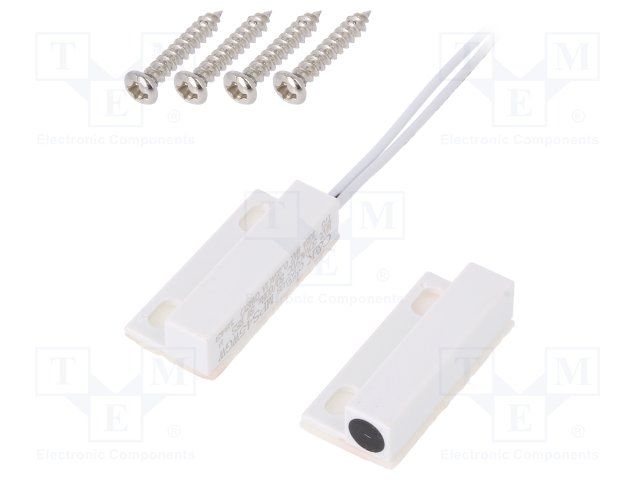

SPST-NO Reed Switch with wire lead termination, designed for magnetic actuation. Features a 300mA current rating and a maximum operating voltage of 30V DC. Operates reliably within a temperature range of -40°C to 100°C. Mounting is facilitated by a screw mechanism. Supplied in bulk packaging with 10 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the ITT MPS45WGW datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
ITT MPS45WGW technical specifications.
| Actuator Material | Magnet |
| Current Rating | 300mA |
| Lead Free | Contains Lead |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 30V |
| Mount | Screw |
| Operating Supply Current | 1A |
| Operating Supply Voltage | 30V |
| Package Quantity | 10 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Sensing Method | Magnetic |
| Series | MPS |
| Supply Current | 300mA |
| Termination | Wire Leads |
| Type | Reed Switch |
| RoHS | Not CompliantNo |
