SPDT slide switch with On-On function, featuring a 2mm switch travel and PC pin termination for through-hole mounting. This standard actuator, 4mm in length and black in color, is constructed from nylon or polyoxymethylene. It offers a contact current rating of 100mA at a maximum DC voltage of 12V, with silver or gold plated copper alloy contacts. Rated for 10,000 electrical and mechanical cycles, it operates within a temperature range of -30°C to 70°C.
MountingThrough Hole, Brackets
Quick Jump:
Technical Specifications
ITT OS102011MS2QN1C technical specifications.
General
| Actuator Color | Black |
| Actuator Length | 4mm |
| Actuator Material | Nylon, Polyamide, PA46, Polyoxymethylene |
| Actuator Type | Standard |
| Contact Current Rating | 100mA |
| Contact Material | Copper Alloy |
| Contact Plating | Silver, Gold |
| Depth | 4.3mm |
| Electrical Life | 10000Cycles |
| Length | 8.6mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 12V |
| Mechanical Life | 10000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Through Hole, Brackets |
| Number of Positions | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | OS |
| Switch Function | On-On |
| Switch Travel | 2mm |
| Termination | PC Pins |
| Throw Configuration | SPDT |
Compliance
| RoHS | Compliant |
Datasheet
ITT OS102011MS2QN1C Datasheet
Download the complete datasheet for ITT OS102011MS2QN1C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

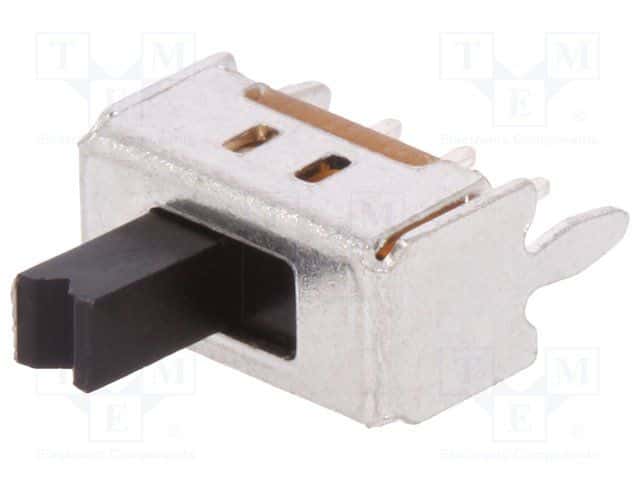

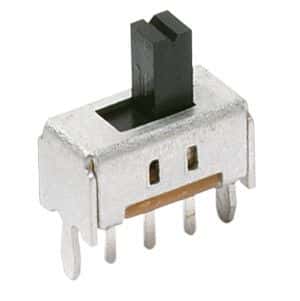

Product Images
