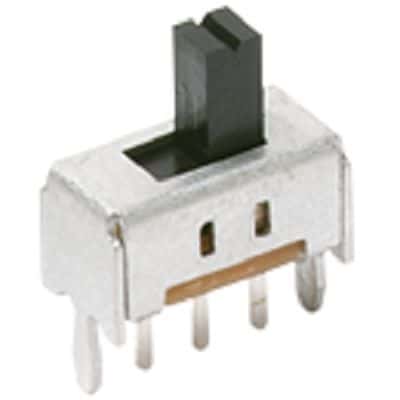

SPDT slide switch featuring a 100mA contact current rating and 12V DC voltage rating. This standard actuator, made from polyoxymethylene/acetal, has a 4mm length and 2mm travel. It offers 10,000 electrical and mechanical cycles, with copper alloy contacts plated in silver and gold. Mounting is via through-hole with brackets, and termination is PC pin. Operating temperature range is -30°C to 70°C.
MountingThrough Hole, Brackets
Quick Jump:
Technical Specifications
ITT OS102011MS2QS1 technical specifications.
General
Actuator Color
Black
Actuator Length
4mm
Actuator Material
Polyoxymethylene, Acetal
Actuator Type
Standard
Contact Current Rating
100mA
Contact Material
Copper Alloy
Contact Plating
Silver, Gold
Electrical Life
10000Cycles
Max Operating Temperature
70°C
Mechanical Life
10000Cycles
Min Operating Temperature
-30°C
Max Voltage Rating (DC)
12V
Mount
Through Hole, Brackets
Number of Positions
2
Orientation
Straight
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
OS
Switch Function
On-On
Switch Travel
2mm
Termination
PC Pin
Throw Configuration
SPDT
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
ITT OS102011MS2QS1 Datasheet
Download the complete datasheet for ITT OS102011MS2QS1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
