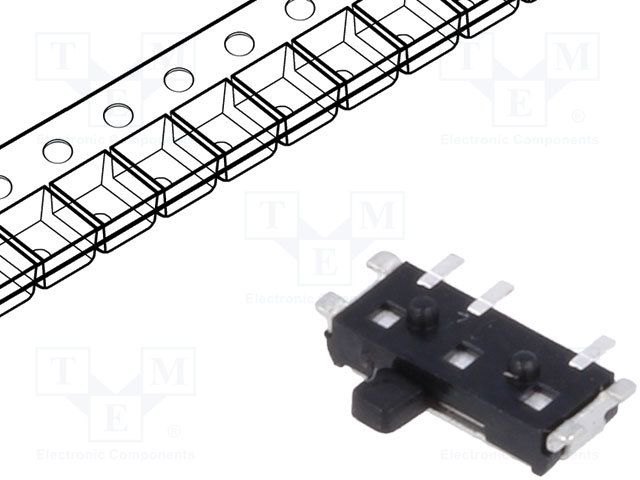

SPDT slide switch, right-angle surface mount with a 1.5mm actuator length and travel. Features a 300mA contact current rating at 6VDC and 6VAC, with silver-plated copper alloy contacts. Operates within a -20°C to 85°C temperature range and offers a mechanical life of 10,000 cycles. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the ITT PCM12SMTR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 1.5mm |
| Actuator Material | Nylon, Polyamide, PA46 |
| Actuator Type | Standard |
| Contact Current Rating | 300mA |
| Contact Material | Copper Alloy, Silver, Copper |
| Contact Plating | Silver |
| Depth | 5mm |
| Lead Free | Lead Free |
| Length | 7.7mm |
| Max Current Rating | 300mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 6V |
| Mechanical Life | 10000Cycles |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Orientation | Right Angle |
| Package Quantity | 3500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PCM |
| Switch Function | On-On |
| Switch Travel | 1.5mm |
| Termination | Gull Wing |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 6V |
| DC Rated Voltage | 6V |
| Width | 6.7mm |
| RoHS | Compliant |
