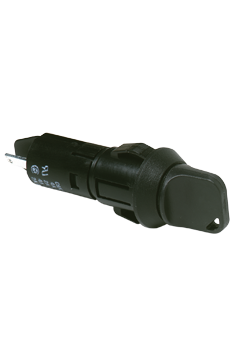

2-position SPST keylock switch with a 4A, 125VAC contact rating. Features silver-plated copper contacts, offering 10,000 electrical cycles. Panel-mounted with a snap-in design, this switch has a 90° index angle and quick connect termination. It is lead-free and RoHS compliant, with a maximum AC voltage rating of 250V and a DC rated voltage of 28V.
MountingPanel, Snap in
Quick Jump:
Technical Specifications
ITT PM0613EBM05KQ22 technical specifications.
General
Contact Current Rating
4A
Contact Material
Copper, Silver
Contact Plating
Silver
Depth
15.87mm
Electrical Life
10000Cycles
Index Angle
90°
Lead Free
Lead Free
Length
15.87mm
Max Current Rating
4A
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
28V
Mount
Panel, Snap in
Number of Positions
2
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
PM
Switch Function
Off-On
Termination
Quick Connect
Throw Configuration
SPST, SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
ITT PM0613EBM05KQ22 Datasheet
Download the complete datasheet for ITT PM0613EBM05KQ22 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
