8-position, SPST rotary and slide actuator DIP switch with a right-angle orientation and through-hole mounting. Features a 2.54mm terminal pitch, PC pin termination, and a 20V DC rated voltage. Constructed with a polyphenylene body and nylon actuator, it offers copper and beryllium copper alloy contacts with gold and nickel plating. Rated for 100mA current and 1000 cycles electrical/mechanical life, operating between -30°C and 60°C. This washable component is RoHS compliant.
PackageSIP
Current Rating100mA
MountingThrough Hole
Quick Jump:
Technical Specifications
ITT SPA08AB technical specifications.
General
| Actuator Length | 0mm |
| Actuator Material | Nylon |
| Actuator Type | Slide (Standard) |
| Body Material | Polyphenylene |
| Package/Case | SIP |
| Contact Material | Copper, BERYLLIUM COPPER ALLOY |
| Contact Plating | Gold, Nickel |
| Current Rating | 100mA |
| Electrical Life | 1000Cycles |
| Max Operating Temperature | 60°C |
| Mechanical Life | 1000Cycles |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (DC) | 100uV |
| Mount | Through Hole |
| Number of Positions | 8 |
| Orientation | Right Angle |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SPA |
| Terminal Pitch | 2.54mm |
| Termination | PC Pins |
| Throw Configuration | SPST |
| DC Rated Voltage | 20V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
ITT SPA08AB Datasheet
Download the complete datasheet for ITT SPA08AB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

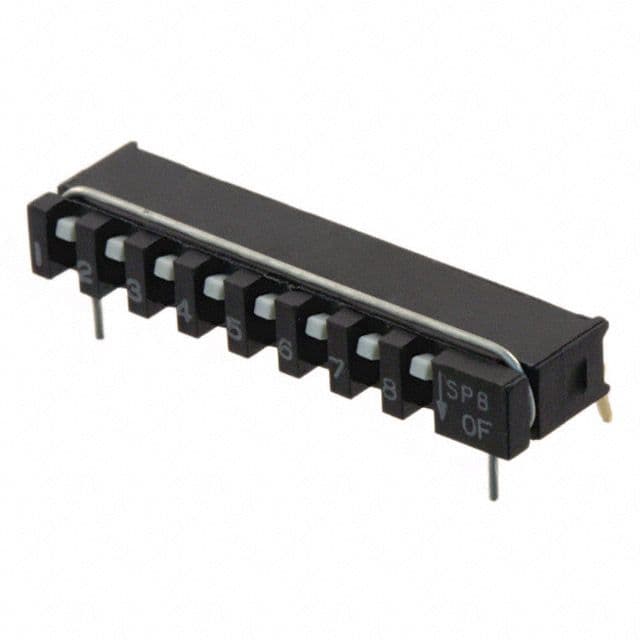

Product Images
