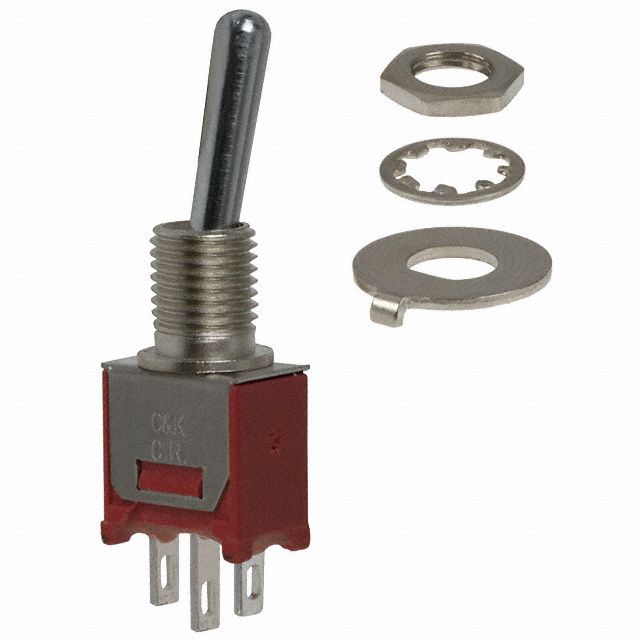

SPDT toggle switch with a 2A current rating at 120V AC and 28V DC. Features a non-illuminated, standard round brass chrome-plated actuator with a 9.4mm length and chrome finish. Silver contacts with silver plating ensure reliable operation for 30,000 cycles. Panel mountable with straight solder termination, operating between -30°C and 85°C. RoHS compliant and lead-free.
Current Rating3A
MountingPanel
Quick Jump:
Technical Specifications
ITT T108SHZQE technical specifications.
General
Actuator Color
Chrome
Actuator Length
9.4mm
Actuator Material
Brass, Chrome
Actuator Type
Standard Round
Contact Material
Silver
Contact Plating
Silver
Current Rating
3A
Depth
6.1mm
Electrical Life
30000Cycles
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Length
8.13mm
Max Current Rating
2A
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
120V
Max Voltage Rating (DC)
28V
Mount
Panel
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
T
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
120V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
ITT T108SHZQE Datasheet
Download the complete datasheet for ITT T108SHZQE to view detailed technical specifications.
