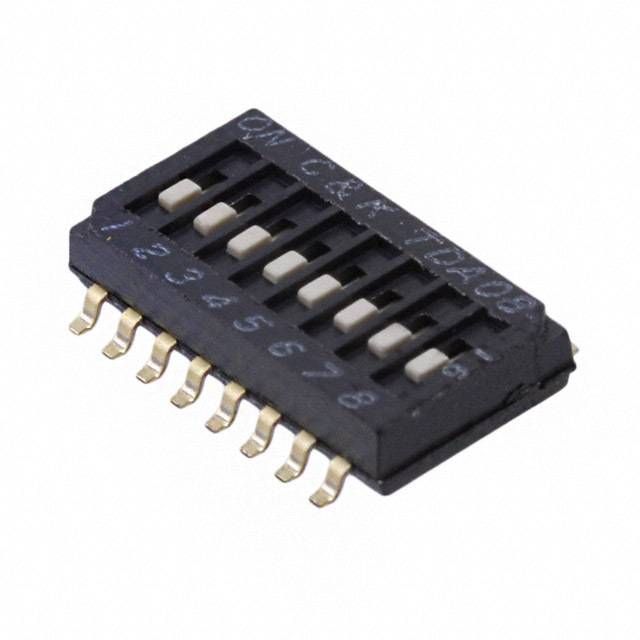

8-circuit slide actuator DIP switch, surface mount with gull wing termination. Features SPST throw configuration, 24 VDC, 25 mA contact rating, and a gold-plated copper alloy contact material. Operates within a -40°C to 85°C temperature range, offering 1000 electrical and mechanical cycles. Constructed with PPS body material and a UL94 V-0 flammability rating, this RoHS compliant component is washable.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the ITT TDA08H0SB1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
ITT TDA08H0SB1 technical specifications.
| Actuator Type | Slide (Standard) |
| Body Material | Polyphenylene |
| Contact Current Rating | 25mA |
| Contact Material | Copper Alloy, Gold |
| Contact Plating | Gold |
| Electrical Life | 1000Cycles |
| Flammability Rating | UL94 V-0 |
| Lead Free | Lead Free |
| Lead Pitch | 1.27mm |
| Material | PPS |
| Max Operating Temperature | 85°C |
| Mechanical Life | 1000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 8 |
| Number of Positions | 8 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TDA |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Washable | Yes |
| Width | 11.29mm |
| RoHS | Compliant |
