Illuminated pushbutton switch featuring SPST-NO (Single Pole Single Throw, Normally Open) configuration with a 1A contact current rating and 120V AC / 28V DC voltage rating. This through-hole mount switch offers silver contacts with silver plating for reliable conductivity and a mechanical life of 60,000 cycles. The polyester and thermoplastic actuator measures 3.94mm in length, and the component operates within a temperature range of -30°C to 85°C, with a UL94 V-0 flammability rating.
MountingThrough Hole
Quick Jump:
Technical Specifications
ITT TP11SH8CQE technical specifications.
General
| Actuator Length | 3.94mm |
| Actuator Material | Polyester, Thermoplastic |
| Contact Current Rating | 1A |
| Contact Material | Silver |
| Contact Plating | Silver |
| Depth | 6.1mm |
| Electrical Life | 60000Cycles |
| Flammability Rating | UL94 V-0 |
| Lead Free | Lead Free |
| Length | 8.13mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 120V |
| Max Voltage Rating (DC) | 28V |
| Mount | Through Hole |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | TP |
| Switch Function | Off-Mom |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 120V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
ITT TP11SH8CQE Datasheet
Download the complete datasheet for ITT TP11SH8CQE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

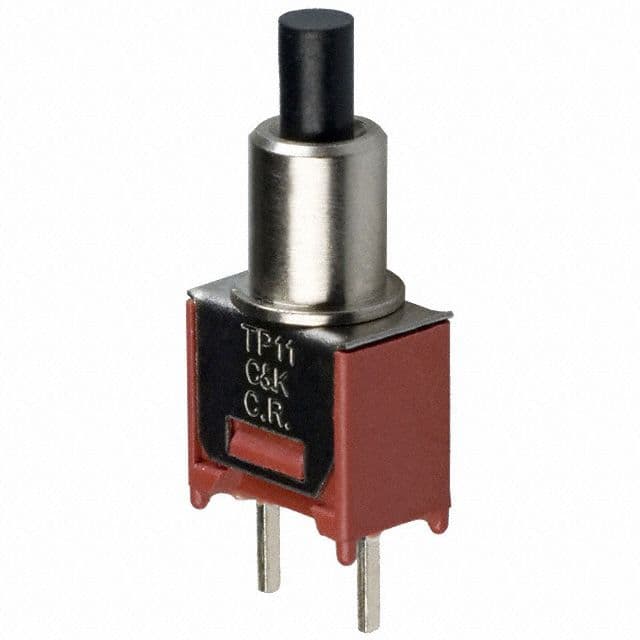

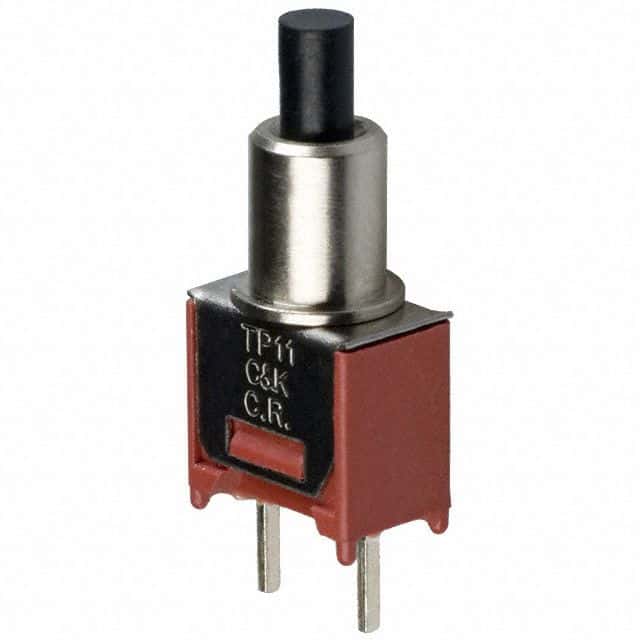

Product Images
