This standard round toggle switch features a silver contact plating and a brass, chrome actuator material. It has a maximum operating temperature of 85°C and a minimum operating temperature of -30°C. The switch has a maximum voltage rating of 250V AC and 28V DC, with an electrical life of 100,000 cycles. It is available in a through hole, PC mount configuration.
MountingThrough Hole, PC Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the ITT U21SY9CQE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
ITT U21SY9CQE technical specifications.
General
| Actuator Length | 10.67mm |
| Actuator Material | Brass, Chrome |
| Actuator Type | Standard Round |
| Contact Material | Silver |
| Contact Plating | Silver |
| Electrical Life | 100000Cycles |
| Illumination Type | Non-Illuminated |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 28V |
| Mount | Through Hole, PC Mount |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Series | 7000 |
| Switch Function | On-On |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 120V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Not CompliantNo |
Datasheet
ITT U21SY9CQE Datasheet
Download the complete datasheet for ITT U21SY9CQE to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

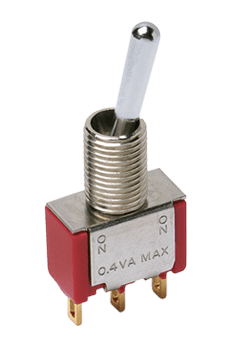

Product Images
