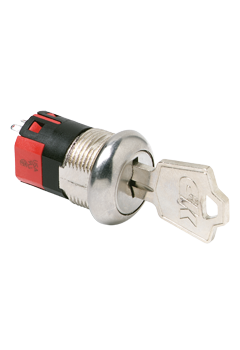

SPDT Keylock Switch, Y Series, featuring a 4A contact current rating and 250V AC maximum voltage rating. This panel-mount switch offers a 90° index angle and straight orientation with solder lug termination. Constructed with a stainless steel housing and copper/silver contacts with silver plating, it boasts an electrical life of 10,000 cycles and a UL94 V-0 flammability rating. The switch is RoHS compliant and lead-free, with UL and CSA approvals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the ITT Y101132C203NQ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA |
| Contact Current Rating | 4A |
| Contact Material | Copper, Silver |
| Contact Plating | Silver |
| Current Rating | 4A |
| Depth | 23.16mm |
| Electrical Life | 10000Cycles |
| Flammability Rating | UL94 V-0 |
| Index Angle | 90° |
| Lead Free | Lead Free |
| Length | 23.16mm |
| Material | Stainless Steel |
| Max Current Rating | 4A |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 28V |
| Mount | Panel |
| Number of Positions | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Y |
| Switch Function | On-On |
| Termination | Lug |
| Throw Configuration | SPST, SPDT, SP |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 28V |
| RoHS | Compliant |
