SPDT snap action switch with a 100mA current rating and 125V AC / 30V DC voltage rating. Features gold and silver contacts with silver plating, a nylon pin plunger actuator, and PC pin terminations for through-hole mounting. Offers a mechanical life of 100,000 cycles and an electrical life of 300,000 cycles, operating within a temperature range of -40°C to 85°C.
Current Rating100mA
MountingThrough Hole, Screw
Quick Jump:
Technical Specifications
ITT ZMA00A150P00PC technical specifications.
General
| Actuator Material | Nylon |
| Actuator Type | PIN PLUNGER |
| Contact Material | Gold, Silver |
| Contact Plating | Silver |
| Current Rating | 100mA |
| Depth | 5.8mm |
| Electrical Life | 300000Cycles |
| Length | 12.8mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 100000Cycles |
| Mount | Through Hole, Screw |
| Operating Force | 1.47N |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | ZMA |
| Switch Function | On-Mom |
| Termination | PC Pins |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
ITT ZMA00A150P00PC Datasheet
Download the complete datasheet for ITT ZMA00A150P00PC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

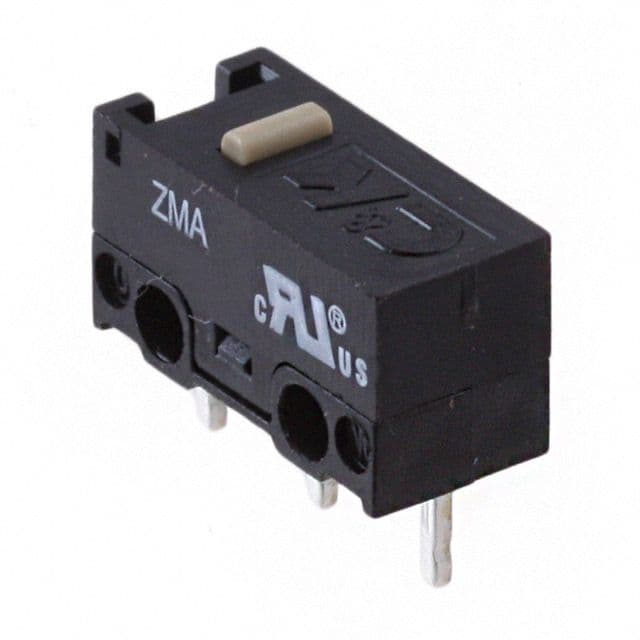

Product Images
