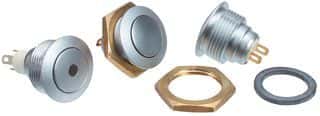

Illuminated pushbutton switch featuring a 400mA contact current rating and 125V AC voltage rating. Constructed with a durable zinc alloy and metal housing, this vandal-resistant switch offers a mechanical life of 1,000,000 cycles. It supports both SPDT and SPST throw configurations with solder termination and boasts an IP67 rating for environmental protection. Operating within a temperature range of -40°C to 125°C, this RoHS compliant component is designed for panel mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the ITW 57-111 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
ITW 57-111 technical specifications.
| Package/Case | 125 |
| Contact Current Rating | 400mA |
| Contact Material | Gold, Palladium Nickel |
| Contact Plating | Gold |
| Contact Type | 1 maker |
| Current Rating | 400mA |
| Material | ZINC ALLOY, Metal |
| Max Current Rating | 400mA |
| Max Operating Temperature | 125°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 50V |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Panel |
| Operating Force | 3N |
| Outside Diameter | 18.5mm |
| Package Quantity | 50 |
| Radiation Hardening | No |
| Ratings | IP67 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 57 |
| Switching Voltage | 125V |
| Termination | Solder |
| Throw Configuration | SPDT, SPST |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 50V |
| RoHS | Compliant |
