Illuminated pushbutton switch featuring a durable zinc alloy construction and vandal-resistant design. Offers SPDT and SPST throw configurations with a 400mA current rating and 125V AC / 50V DC voltage rating. Includes green LED illumination with 160mcd luminous intensity. Panel mountable with solder termination and a mechanical life of 1,000,000 cycles. Operating temperature range from -40°C to 125°C.
Package125
Current Rating400mA
MountingPanel
Quick Jump:
Technical Specifications
ITW 57-112G technical specifications.
General
| Package/Case | 125 |
| Color | Green |
| Contact Current Rating | 400mA |
| Contact Material | Gold, Palladium Nickel |
| Contact Plating | Gold |
| Current Rating | 400mA |
| Illumination Type | LED |
| Luminous Intensity | 160mcd |
| Material | ZINC ALLOY |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 50V |
| Mechanical Life | 1000000Cycles |
| Mount | Panel |
| Operating Force | 3N |
| Outside Diameter | 18.5mm |
| Package Quantity | 50 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | 57 |
| Termination | Solder |
| Throw Configuration | SPDT, SPST |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Not CompliantNo |
Datasheet
ITW 57-112G Datasheet
Download the complete datasheet for ITW 57-112G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

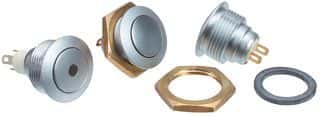

Product Images
