Illuminated pushbutton switch featuring a durable zinc alloy construction and an 18.5mm outside diameter for panel mounting. Offers SPDT throw configuration with gold-plated contacts (gold, palladium nickel) rated for 400mA at 125VAC / 50VDC. Includes red LED illumination with 100mcd luminous intensity and IP67 sealing for environmental resistance. Operates within a -40°C to 125°C temperature range with a 3N operating force.
Package125
Current Rating400mA
MountingPanel
Quick Jump:
Technical Specifications
ITW 57-112R technical specifications.
General
| Package/Case | 125 |
| Color | Red |
| Contact Current Rating | 400mA |
| Contact Material | Gold, Palladium Nickel |
| Contact Plating | Gold |
| Current Rating | 400mA |
| Illumination Color | Red |
| Illumination Type | LED |
| Luminous Intensity | 100mcd |
| Material | ZINC ALLOY |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Panel |
| Operating Force | 3N |
| Outside Diameter | 18.5mm |
| Package Quantity | 50 |
| Ratings | IP67 |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | 57 |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Not Compliant |
Datasheet
ITW 57-112R Datasheet
Download the complete datasheet for ITW 57-112R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

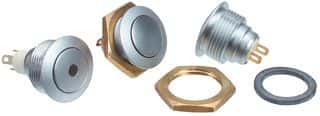

Product Images
