Ixys
CPC3730CTR
TRANSISTOR 0.14 A, 350 V, 30 ohm, N-CHANNEL, Si, POWER, MOSFET, ROHS COMPLIANT PACKAGE-3, FET General Purpose Power
PackageSOT-89-3
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Ixys CPC3730CTR technical specifications.
General
| Package/Case | SOT-89-3 |
| Drain to Source Resistance | 35mR |
| Drain to Source Voltage (Vdss) | 350V |
| Fall Time | 50ns |
| FET Type | 1 N-Channel |
| Gate to Source Voltage (Vgs) | -3.9V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.4W |
| Number of Channels | 1 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| RoHS Compliant | Yes |
| Series | CPC3730 |
| Turn-Off Delay Time | 20ns |
| Turn-On Delay Time | 20ns |
| Weight | 0.004603oz |
Compliance
| RoHS | Compliant |
Datasheet
Ixys CPC3730CTR Datasheet
Download the complete datasheet for Ixys CPC3730CTR to view detailed technical specifications.
No datasheet is available for this part.

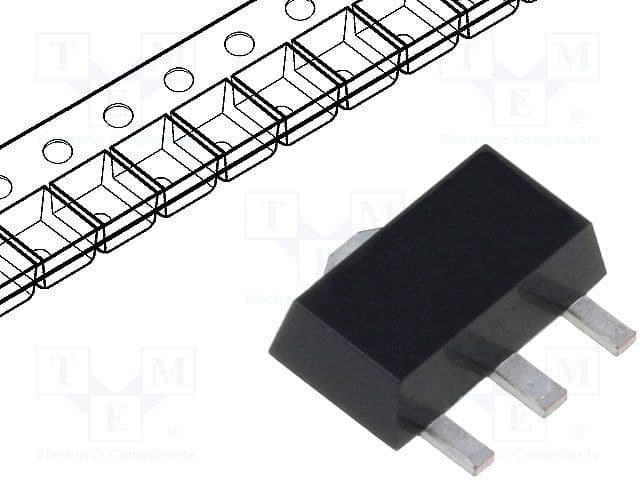

Product Images
