The CPC5712U is a single-channel telecom IC from Ixys, packaged in a RoHS compliant SSOP-16. It operates within a temperature range of -40°C to 85°C and has a maximum power dissipation of 50mW. The IC is designed for surface mount applications and has an operating supply current of 1.72mA. The CPC5712U is available in quantities of 100 and is packaged in rail/Tube packaging.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Ixys CPC5712U technical specifications.
General
| Package/Case | SSOP |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 50mW |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Operating Supply Current | 1.72mA |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Ixys CPC5712U Datasheet
Download the complete datasheet for Ixys CPC5712U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

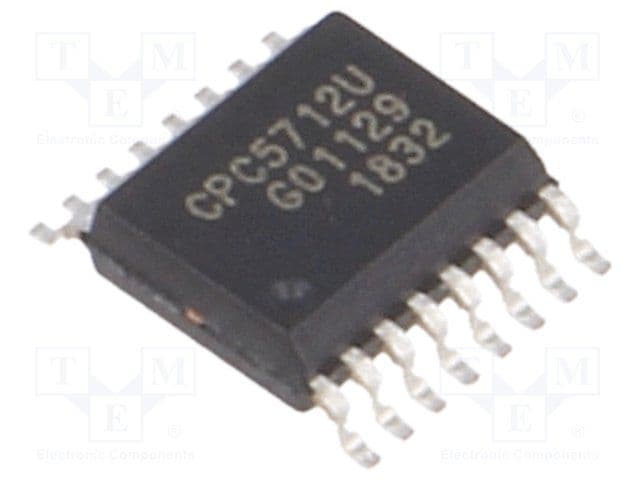

Product Images
