Ixys
DPG60I400HA
Rectifier Diode, 1 Phase, 1 Element, 60A, 400V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, TO-247AD, 2 PIN
PackageTO-247
MountingThrough Hole
Quick Jump:
Technical Specifications
Ixys DPG60I400HA technical specifications.
General
Average Rectified Current
60A
Package/Case
TO-247
Forward Current
60A
Max Forward Surge Current (Ifsm)
600A
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
400V
Max Reverse Leakage Current
1uA
Max Reverse Voltage (DC)
400V
Max Surge Current
450A
Mount
Through Hole
Package Quantity
30
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
450A
Reach SVHC Compliant
No
Reverse Recovery Time
45ns
RoHS Compliant
Yes
Series
HiPerFRED™
Weight
0.229281oz
Compliance
RoHS
Compliant
Datasheet
Ixys DPG60I400HA Datasheet
Download the complete datasheet for Ixys DPG60I400HA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

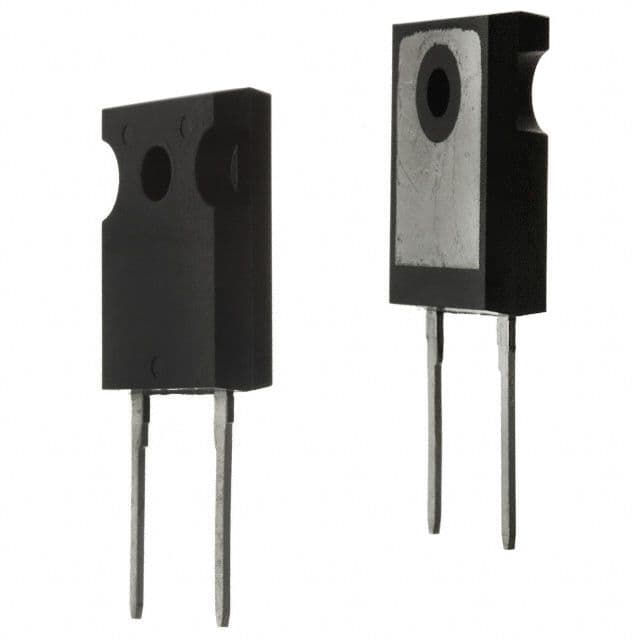

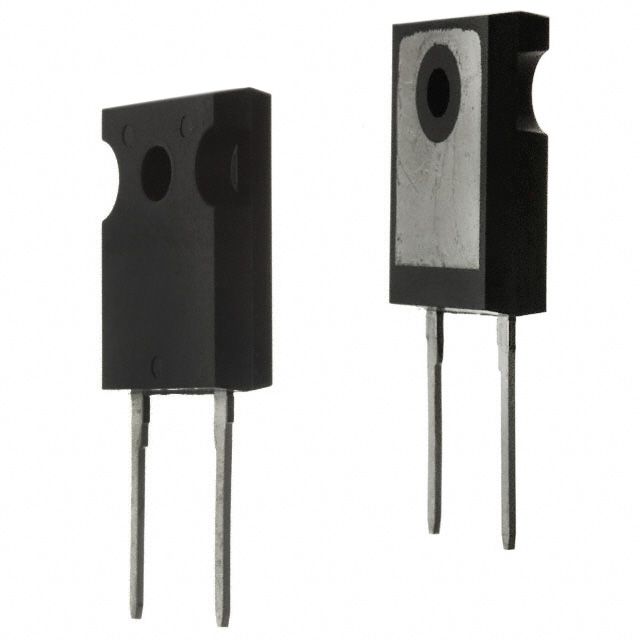

Product Images
