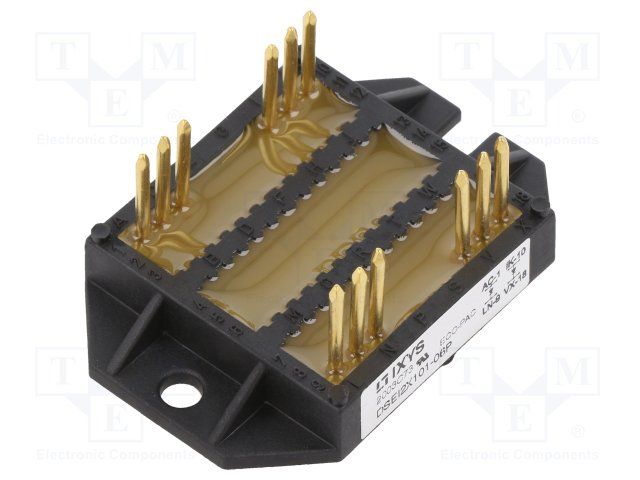

The Ixys DSEI2X101-06P is a general purpose rectifier with a maximum operating temperature of 150°C and a minimum operating temperature of -40°C. It has a maximum reverse voltage of 600V and a maximum reverse current of 3mA. The device is packaged in an ECOPAC-12 module and is RoHS compliant. It can handle a peak non-repetitive surge current of 1.2kA and a maximum surge current of 1.3kA. The reverse recovery time is 60ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ixys DSEI2X101-06P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Ixys DSEI2X101-06P technical specifications.
| Average Rectified Current | 96A |
| Package/Case | Module |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Reverse Current | 3mA |
| Max Reverse Voltage (DC) | 600V |
| Max Surge Current | 1.3kA |
| Mount | Chassis Mount, Screw |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 1.2kA |
| Reverse Recovery Time | 60ns |
| Reverse Voltage | 1.2kV |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Ixys DSEI2X101-06P to view detailed technical specifications.
