PackageSOT-227-4
MountingChassis Mount, Panel, Screw
Quick Jump:
Technical Specifications
Ixys DSEI2X30-12B technical specifications.
General
Average Rectified Current
28A
Package/Case
SOT-227-4
Forward Current
28A
Height
9.6mm
Lead Free
Lead Free
Length
38.23mm
Max Forward Surge Current (Ifsm)
210A
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
1.2kV
Max Reverse Current
750uA
Max Reverse Voltage (DC)
1.2kV
Max Surge Current
210A
Mount
Chassis Mount, Panel, Screw
Package Quantity
10
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
210A
Reach SVHC Compliant
No
Reverse Recovery Time
60ns
Reverse Recovery Time-Max
60ns
Reverse Voltage
1.2kV
RoHS Compliant
Yes
Width
25.42mm
Compliance
RoHS
Compliant
Datasheet
Ixys DSEI2X30-12B Datasheet
Download the complete datasheet for Ixys DSEI2X30-12B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

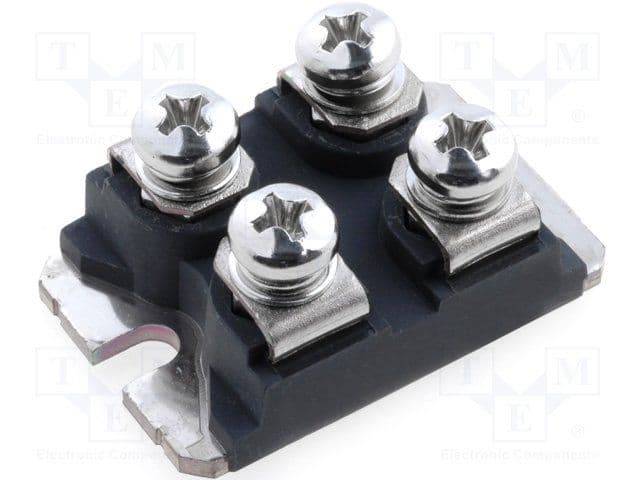

Product Images
