Technical Specifications
Ixys DSEP2X35-06C technical specifications.
General
| Average Rectified Current | 35A |
| Package/Case | SOT-227-4 |
| Forward Current | 35A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Max Reverse Current | 250uA |
| Max Reverse Voltage (DC) | 600V |
| Max Surge Current | 300A |
| Mount | Chassis Mount, Screw |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 300A |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 20ns |
| Reverse Voltage | 600V |
| RoHS Compliant | Yes |
| Series | HiPerDynFRED™ |
Compliance
| RoHS | Compliant |
Datasheet
Ixys DSEP2X35-06C Datasheet
Download the complete datasheet for Ixys DSEP2X35-06C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

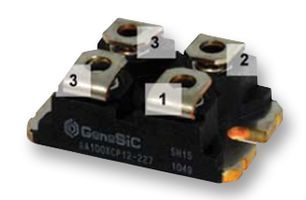

Product Images
