Fast recovery diode, 600V reverse voltage, 90A average rectified current, and 1kA peak non-repetitive surge current. Features a 35ns reverse recovery time and a maximum operating temperature of 150°C. Packaged in a SOT-227-4 chassis mount case, this RoHS compliant component is suitable for general-purpose rectification.
PackageSOT-227-4
MountingChassis Mount, Panel, Screw
Quick Jump:
Technical Specifications
Ixys DSEP2X91-06A technical specifications.
General
| Average Rectified Current | 90A |
| Package/Case | SOT-227-4 |
| Forward Current | 90A |
| Height | 12.22mm |
| Lead Free | Lead Free |
| Length | 38.23mm |
| Max Forward Surge Current (Ifsm) | 1kA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Max Reverse Current | 1mA |
| Max Reverse Voltage (DC) | 600V |
| Max Surge Current | 1kA |
| Mount | Chassis Mount, Panel, Screw |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 1kA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 35ns |
| Reverse Recovery Time-Max | 35ns |
| Reverse Voltage | 600V |
| RoHS Compliant | Yes |
| Series | HiPerFRED™ |
| Width | 25.42mm |
Compliance
| RoHS | Compliant |
Datasheet
Ixys DSEP2X91-06A Datasheet
Download the complete datasheet for Ixys DSEP2X91-06A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

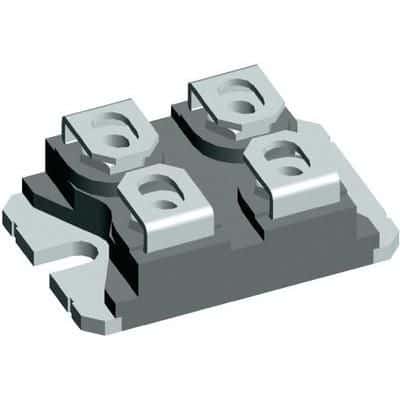

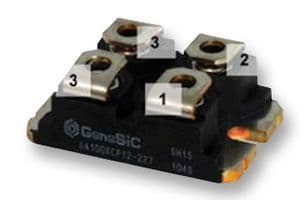

Product Images
