Avalanche rectifier diode for single-phase applications, featuring a 60A average rectified current and 600V repetitive reverse voltage. This silicon diode offers a 600A maximum forward surge current and a fast 35ns reverse recovery time. Packaged in a TO-247AD through-hole mount, it operates from -55°C to 175°C and is lead-free and RoHS compliant.
PackageTO-247AD
MountingThrough Hole
Quick Jump:
Technical Specifications
Ixys DSEP60-06A technical specifications.
General
| Average Rectified Current | 60A |
| Package/Case | TO-247AD |
| Forward Current | 60A |
| Height | 21.46mm |
| Lead Free | Lead Free |
| Length | 16.26mm |
| Max Forward Surge Current (Ifsm) | 600A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Max Reverse Current | 650uA |
| Max Reverse Voltage (DC) | 600V |
| Max Surge Current | 600A |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 600A |
| Radiation Hardening | No |
| Reverse Recovery Time | 35ns |
| Reverse Recovery Time-Max | 35ns |
| Reverse Voltage | 600V |
| RoHS Compliant | Yes |
| Series | HiPerFRED™ |
| Width | 5.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Ixys DSEP60-06A Datasheet
Download the complete datasheet for Ixys DSEP60-06A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

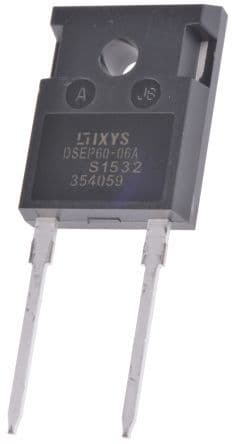

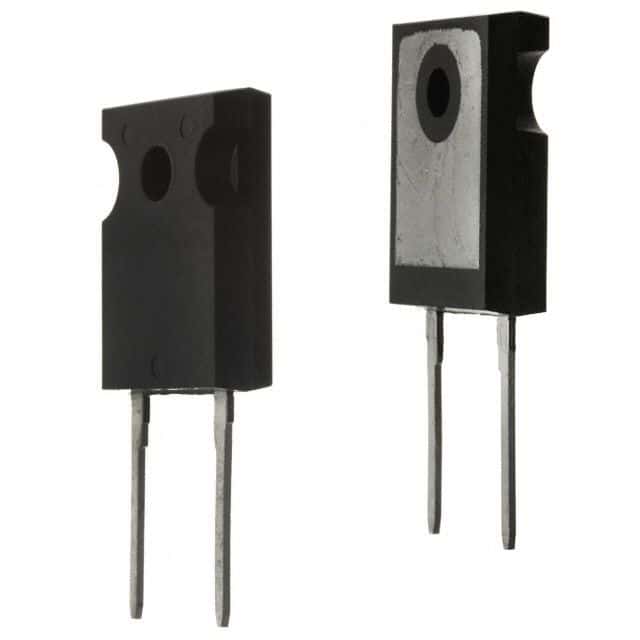

Product Images
