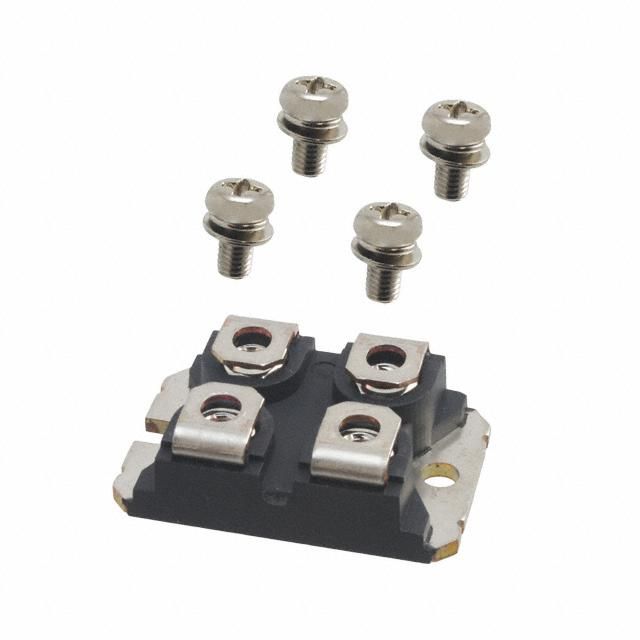

The DSI2X55-16A is a 1.6kV general purpose rectifier from Ixys, capable of handling up to 56A of average rectified current. It features a SOT-227-4 package and is designed for chassis mount applications, secured by screw. The device operates within a temperature range of -40°C to 150°C and is compliant with RoHS regulations. It is available in a packaging quantity of 10 units per rail/Tube.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ixys DSI2X55-16A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Ixys DSI2X55-16A technical specifications.
| Average Rectified Current | 56A |
| Package/Case | SOT-227-4 |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 1.6kV |
| Max Reverse Current | 300uA |
| Max Reverse Voltage (DC) | 1.6kV |
| Mount | Chassis Mount, Screw |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 700A |
| Radiation Hardening | No |
| Reverse Voltage | 1.6kV |
| RoHS Compliant | Yes |
| Series | DSI2x55-16 |
| Weight | 1.340411oz |
| RoHS | Compliant |
