Ixys
DSP25-16AR
Rectifier Diode, Avalanche, 1 Phase, 2 Element, 28A, 1600V V(RRM), Silicon, ROHS COMPLIANT, ISOPLUS247, 3 PIN
MountingThrough Hole
Quick Jump:
Technical Specifications
Ixys DSP25-16AR technical specifications.
General
Average Rectified Current
28A
Lead Free
Lead Free
Max Operating Temperature
180°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
1.6kV
Max Reverse Current
2mA
Max Reverse Voltage (DC)
1.6kV
Max Surge Current
300A
Mount
Through Hole
Package Quantity
30
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
330A
Radiation Hardening
No
Reverse Voltage
1.6kV
RoHS Compliant
Yes
DC Rated Voltage
1.6kV
Compliance
RoHS
Compliant
Datasheet
Ixys DSP25-16AR Datasheet
Download the complete datasheet for Ixys DSP25-16AR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

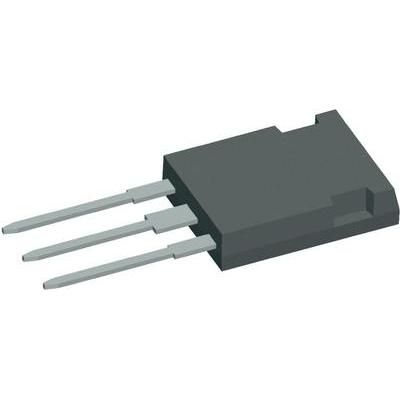

Product Images
