Ixys
DSP45-16A
Rectifier Diode, Avalanche, 1 Phase, 2 Element, 45A, 1600V V(RRM), Silicon, TO-247AD, ROHS COMPLIANT, PLASTIC, TO-247, 3 PIN
PackageTO-247AD
MountingThrough Hole
Quick Jump:
Technical Specifications
Ixys DSP45-16A technical specifications.
General
Average Rectified Current
45A
Package/Case
TO-247AD
Forward Current
45A
Height
21.46mm
Lead Free
Lead Free
Length
16.26mm
Max Forward Surge Current (Ifsm)
480A
Max Operating Temperature
180°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
1.6kV
Max Reverse Current
3mA
Max Reverse Voltage (DC)
1.6kV
Max Surge Current
480A
Mount
Through Hole
Package Quantity
30
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
510A
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Voltage
1.6kV
RoHS Compliant
Yes
Width
5.3mm
Compliance
RoHS
Compliant
Datasheet
Ixys DSP45-16A Datasheet
Download the complete datasheet for Ixys DSP45-16A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

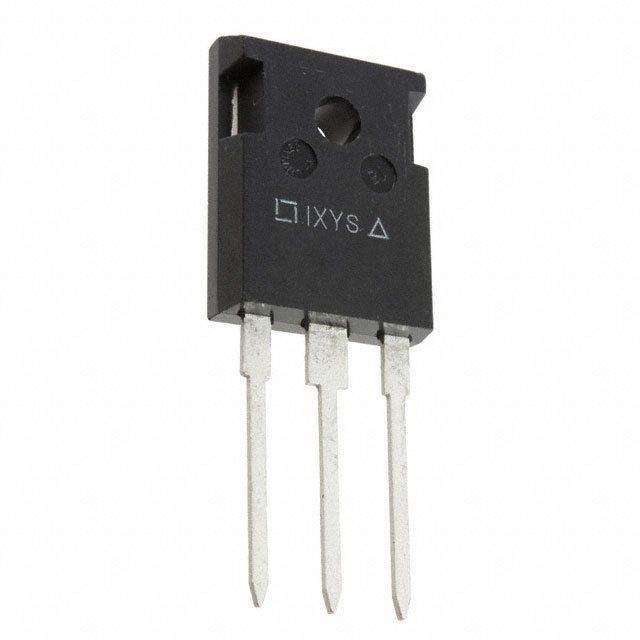

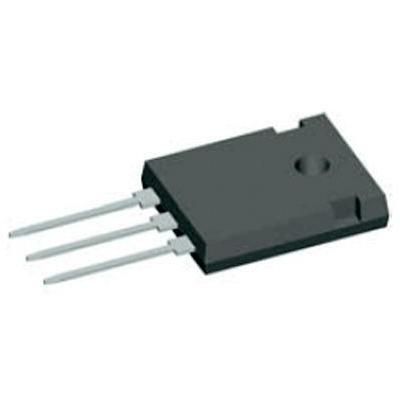

Product Images
