Ixys
DSP8-12A
Rectifier Diode, Avalanche, 1 Phase, 2 Element, 11A, 1200V V(RRM), Silicon, TO-220AB, ROHS COMPLIANT, PLASTIC PACKAGE-3
PackageTO-220AB
MountingThrough Hole
Quick Jump:
Technical Specifications
Ixys DSP8-12A technical specifications.
General
Average Rectified Current
11A
Package/Case
TO-220AB
Forward Current
11A
Height
9.15mm
Lead Free
Lead Free
Length
10.66mm
Max Forward Surge Current (Ifsm)
100A
Max Operating Temperature
180°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
1.2kV
Max Reverse Current
5uA
Max Reverse Voltage (DC)
1.2kV
Max Surge Current
100A
Mount
Through Hole
Package Quantity
50
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
110A
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Voltage
1.2kV
RoHS Compliant
Yes
Width
4.82mm
Compliance
RoHS
Compliant
Datasheet
Ixys DSP8-12A Datasheet
Download the complete datasheet for Ixys DSP8-12A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

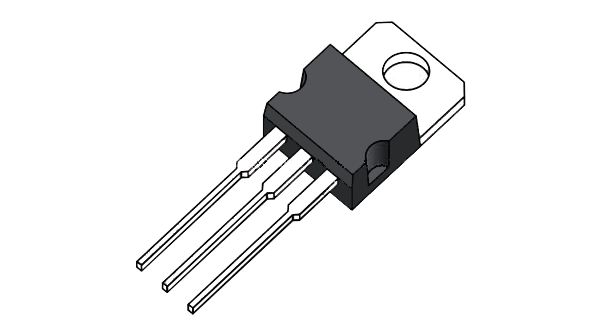

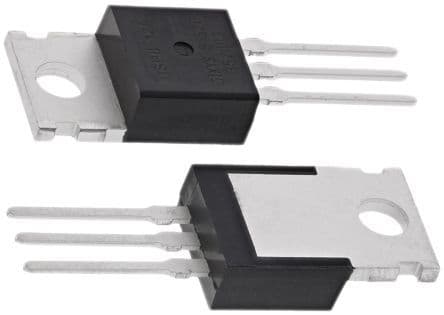

Product Images
