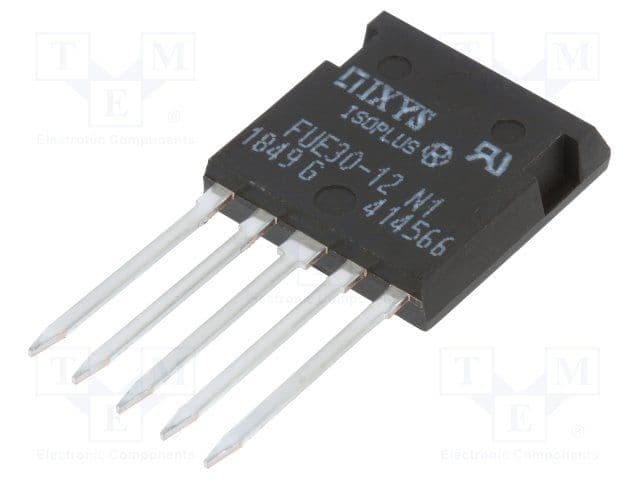

The Ixys FUE30-12N1 is a bridge rectifier with a maximum operating temperature range of -55°C to 175°C. It has a maximum repetitive reverse voltage of 1.2kV and a maximum average rectified current of 30A. The device is packaged in a through-hole R-PSIP-T5 package and is RoHS compliant. The FUE30-12N1 has a maximum power dissipation of 65W and a maximum surge current of 90A.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ixys FUE30-12N1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Average Rectified Current | 30A |
| Height | 21.34mm |
| Lead Free | Lead Free |
| Length | 20.29mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 1.2kV |
| Max Reverse Current | 100uA |
| Max Reverse Leakage Current | 500uA |
| Max Surge Current | 90A |
| Mount | Through Hole |
| Number of Elements | 1 |
| Package Quantity | 24 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 90A |
| Power Dissipation | 65W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Width | 5.21mm |
| RoHS | Compliant |
