Technical Specifications
Ixys IX4426NTR technical specifications.
General
| Package/Case | SOIC |
| Channel Type | Independent |
| Fall Time | 8ns |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Supply Voltage | 35V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Operating Supply Current | 4mA |
| Output Current | 1.5A |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 60ns |
| Turn-On Delay Time | 60ns |
| Weight | 0.019048oz |
Compliance
| RoHS | Compliant |
Datasheet
Ixys IX4426NTR Datasheet
Download the complete datasheet for Ixys IX4426NTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

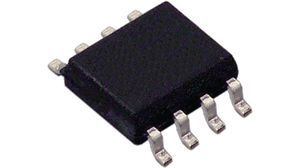

Product Images
