Single-channel MOSFET driver with 9A maximum output current. Features a 60ns propagation delay and 15ns fall time. Operates from a 4.5V to 35V supply voltage range. CMOS technology, surface mount DFN package, and RoHS compliant. Suitable for demanding power management applications.
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Ixys IXDD609D2TR technical specifications.
General
Package/Case
DFN
Channel Type
Single
Fall Time
15ns
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Output Current
9A
Max Supply Voltage
35V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Channels
1
Number of Drivers
1
Operating Supply Current
10uA
Package Quantity
2000
Packaging
Tape and Reel
Propagation Delay
60ns
RoHS Compliant
Yes
Weight
0.001319oz
Compliance
RoHS
Compliant
Datasheet
Ixys IXDD609D2TR Datasheet
Download the complete datasheet for Ixys IXDD609D2TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

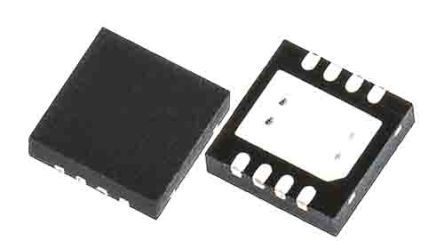

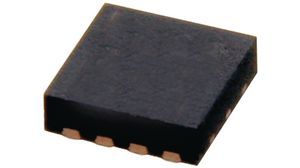

Product Images
