Single-channel, buffer/inverter based MOSFET driver with CMOS technology, designed for surface mount applications. Features a maximum output current of 9A and operates within a supply voltage range of 4.5V to 35V. Offers a fast fall time of 15ns and a wide operating temperature range from -55°C to 150°C. Packaged in a TO-263-5 case, this RoHS compliant component is supplied in rail/tube packaging.
PackageTO-263-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Ixys IXDN609YI technical specifications.
General
| Package/Case | TO-263-5 |
| Channel Type | Single |
| Fall Time | 15ns |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 9A |
| Max Supply Voltage | 35V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Operating Supply Current | 10uA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Weight | 0.056438oz |
Compliance
| RoHS | Compliant |
Datasheet
Ixys IXDN609YI Datasheet
Download the complete datasheet for Ixys IXDN609YI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

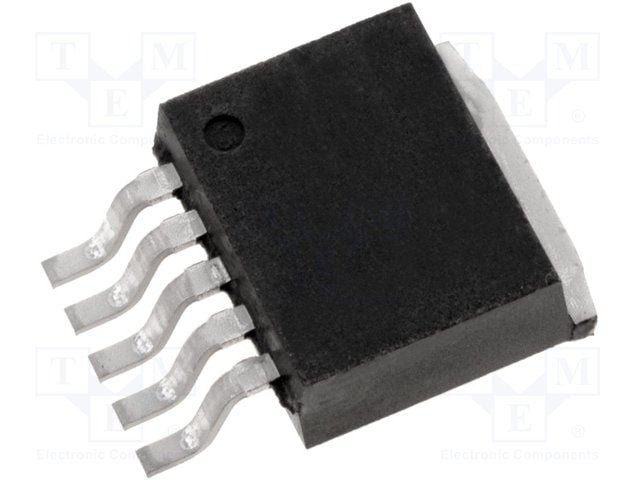

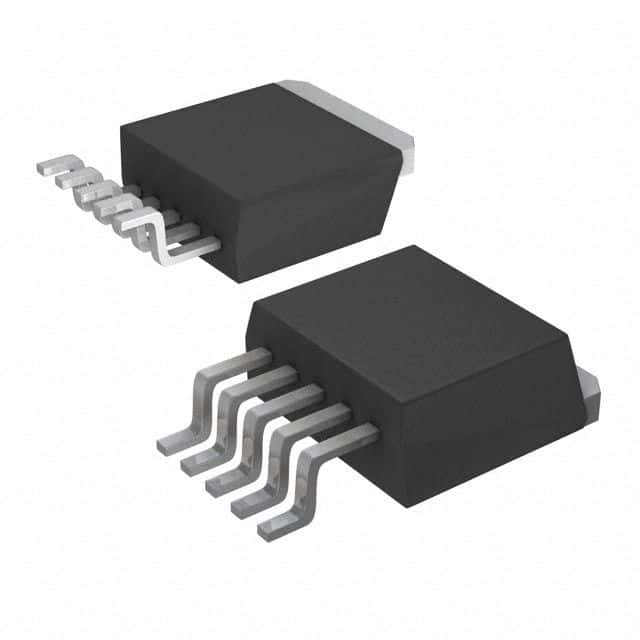

Product Images
