Technical Specifications
Ixys IXDN614PI technical specifications.
General
Package/Case
DIP
Channel Type
Single
Fall Time
18ns
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
14A
Max Supply Voltage
35V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Channels
1
Number of Drivers
1
Number of Outputs
1
Operating Supply Current
1mA
Output Current
14A
Package Quantity
50
Packaging
Rail/Tube
Propagation Delay
70ns
RoHS Compliant
Yes
Turn-Off Delay Time
70ns
Turn-On Delay Time
70ns
Weight
0.080001oz
Compliance
RoHS
Compliant
Datasheet
Ixys IXDN614PI Datasheet
Download the complete datasheet for Ixys IXDN614PI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

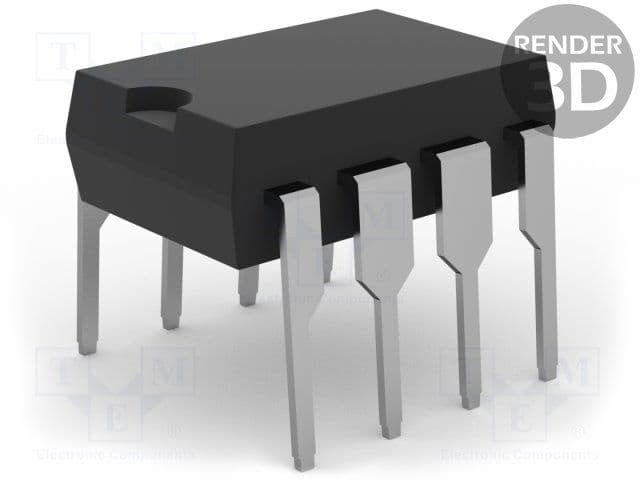

Product Images
