Technical Specifications
Ixys IXFA180N10T2 technical specifications.
General
| Package/Case | TO-263-3 |
| Continuous Drain Current (ID) | 180A |
| Drain to Source Voltage (Vdss) | 100V |
| Input Capacitance | 10.5nF |
| Lead Free | Lead Free |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 480W |
| Mount | Surface Mount |
| Packaging | Rail/Tube |
| Rds On Max | 6mR |
| RoHS Compliant | Yes |
| Series | GigaMOS™, HiperFET™, TrenchT2™ |
Compliance
| RoHS | Compliant |
Datasheet
Ixys IXFA180N10T2 Datasheet
Download the complete datasheet for Ixys IXFA180N10T2 to view detailed technical specifications.
No datasheet is available for this part.

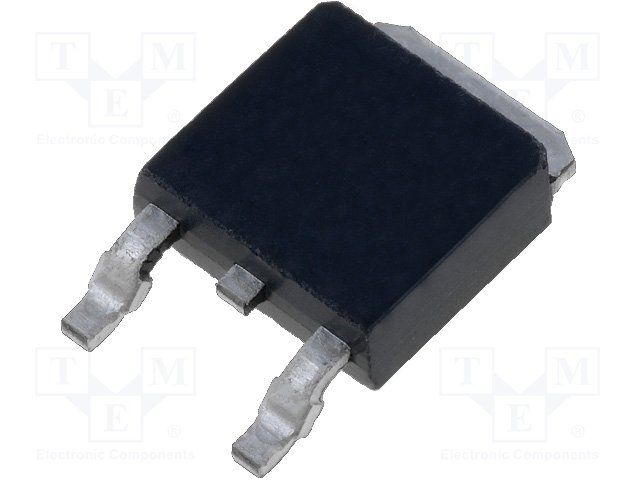

Product Images
