N-Channel Power MOSFET, 200V Vdss, 70A Continuous Drain Current (ID), and 40mΩ Max Drain-Source On-Resistance (Rds On). Features a TO-247 plastic package for through-hole mounting, with a maximum power dissipation of 690W and an operating temperature range of -55°C to 150°C. Includes fast switching characteristics with turn-on delay time of 17ns and fall time of 9ns. This RoHS compliant component offers a gate-to-source voltage of 30V and input capacitance of 3.15nF.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ixys IXFH70N20Q3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

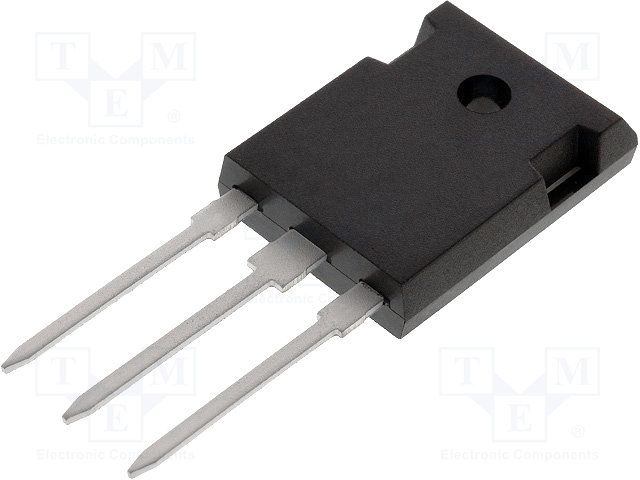

Ixys IXFH70N20Q3 technical specifications.
| Package/Case | TO-247 |
| Continuous Drain Current (ID) | 70A |
| Drain to Source Breakdown Voltage | 200V |
| Drain to Source Resistance | 40mR |
| Drain to Source Voltage (Vdss) | 200V |
| Drain-source On Resistance-Max | 40MR |
| Fall Time | 9ns |
| Gate to Source Voltage (Vgs) | 30V |
| Height | 16.26mm |
| Input Capacitance | 3.15nF |
| Lead Free | Lead Free |
| Length | 16.26mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 690W |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 690W |
| Rds On Max | 40mR |
| RoHS Compliant | Yes |
| Series | HiPerFET™ |
| Turn-Off Delay Time | 24ns |
| Turn-On Delay Time | 17ns |
| Width | 5.3mm |
| RoHS | Compliant |
