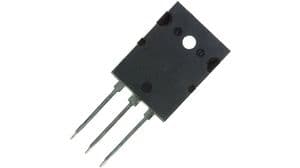

The IXFK120N30P3 is a high-power MOSFET from Ixys with a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. It features a maximum power dissipation of 1.13kW and a maximum drain to source voltage of 300V. The device has a continuous drain current of 120A and a maximum Rds on resistance of 27mΩ. It is packaged in a TO-264-3 package and is designed for through hole mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ixys IXFK120N30P3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-264-3 |
| Continuous Drain Current (ID) | 120A |
| Drain to Source Voltage (Vdss) | 300V |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 26.16mm |
| Input Capacitance | 8.63nF |
| Length | 19.96mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.13kW |
| Mount | Through Hole |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Rds On Max | 27mR |
| Series | HiPerFET™, Polar3™ |
| Turn-Off Delay Time | 60ns |
| Turn-On Delay Time | 26ns |
| Width | 5.13mm |
| RoHS | Compliant |
